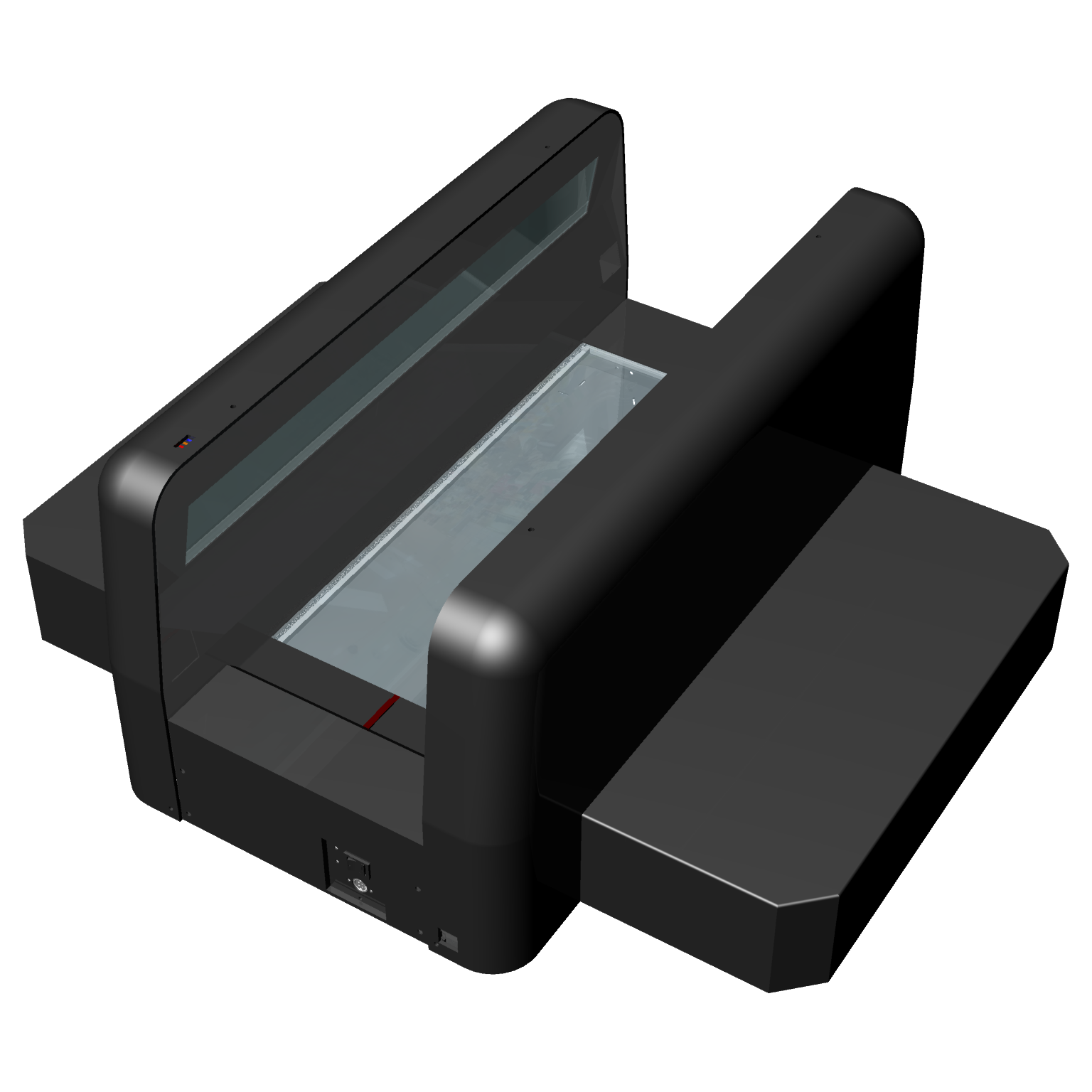

INFOOT2 발 스캐너
페이지 정보
- Description
- HW & SW
- RESEARCH NEWS
- 다운로드/기타
-
- 3차원 발 스캔
- 20 - 40 여개의 발 측정 항목
- 1mm 정밀 측정 오차
- 빠른 스캔, 우수한 정밀도
- 레이저와 카메라를 이용한 측정 시스템
- 고객 데이터 데이터베이스화
- 설치와 이동이 매우 용이함
- 파일 변환 기능
- 실내외 빛의 영향 없이 어느 환경에서 사용
-
Scanner Type of Product 3D Foot Scanning System Product Name INFOOT 2 Product Model Code IFU2-S-01 Dimensions 633(L) × 352(W) × 300(H) mm Power Supply 100-240V∼ ±10% 50/60Hz (AC adapter included) Power Consumption DC24V 5A (120W max.) Total Weight*1 (Body Weight) 22kg (18kg) Safety Agency Approvals CE, MET Glass Heating ITO thin film Major Accessories Foot stages
AC adapter
USB 3.0 cable 1m
USB 3.0 active repeater cable 3m
Calibration kit
Landmarks
Model foot
Softwares (Measure, Tester, DBController)*2
USB licence key
Manual*2*1 includes a pair of foot stages and an AC adapter *2 provided by downloadEnvironment Temprature 15°C ∼ 40°C Humidity 35% ∼ 60% Installation Location Indoor use only
(Avoid direct sunlight. Addtionally avoid placing near red/orange colored light sources or POP)Scanning Scan Speed 60, 120mm/sec (about 2 second for a foot) Processing Time approx. 15 ∼ 20 sec/foot (when 8 or more logical processors) Accuracy 1.0mm step : Y(W)-Z(H)=1mm, X(L)=1mm
0.5mm step : Y(W)-Z(H)=1mm, X(L)=0.5mmData Format FBD (proprietary binary data format) Scan Area 380(L) × 200(W) × 150(H) mm Conditions Target for Scan Human foot, Landmarks
(It may not be possible to scan objects which absorb laser or are lustrous.)Maximum Size for Scan L=380mm, W=180mm Weight Limit 200kg PC Requirements OS Microsoft Windows 10 (32 bit, 64 bit) CPU x86 compatible 2.6GHz or more, 8 or more logical porosessors Memory 4GB or more Interface USB 3.0 ×1, USB 2.0 ×1 (USB 3.0 for scanner, USB 2.0 for licence key) Resolution 1024×768 pixels or more (1280×800 or more recommended) Storage 20MB for software installation
(Approximately 1MB is required for each scan, i.e. a couple of foot data.)Connecting Conditions A USB 3.0 active repeater cable(3m) and a USB3.0 cable(1m) that are provided by I-Ware Lab as accessories are required to connect a PC and the scanner.
The scanner is not guaranteed to run in case the hub, cable and an active repeater cable other than the ones I-Ware specifies are used.Dimensions (unit:mm)
INFOOT 2
-
상우과학은 I-Ware Foot Scanner 와 오랜동안 한국에 Foot Scanner 도입에 대한 지원을 하고 있습니다.
- 오래전 한국에 Foot Scanner 처음 도입하고 일본 I-ware 사 방문하여 장비 교육 자료
(2000년 I-ware 방문시 사진 I-ware 대표님, 김박사님,전호준대표,이박사님 )- 오래전 한국에 Size Korea 인체계측을 위하여 Foot Scanner 처음 도입하여 한국인의 인체 계측을 표준과학연구원과 시작시일본 I-ware 사 방문하여 발 계측에 관한 교육을 하였습니다.
